Configure connections to OpenTelemetry compatible platforms

The Grepr OpenTelemetry integration enables you to ingest logs into Grepr using a Grepr source, process them with a Grepr pipeline, and then send the processed logs to any observability vendor that accepts the OpenTelemetry Protocol HTTP source (OTLP/HTTP).

To send logs to a Grepr pipeline before forwarding the logs to an OTLP/HTTP source, you change your collector configuration to send the logs to a Grepr endpoint URL instead of a OTLP/HTTP endpoint. The Grepr OpenTelemetry integration supports several OpenTelemetry-compatible collectors, including the OpenTelemetry Collector, Datadog collectors, and Sumo Logic collectors.

You can use the Grepr UI or REST API to add an OpenTelemetry integration. To learn how to create an OpenTelemetry integration in the Grepr UI and configure collectors to send logs to Grepr, see Use an OpenTelemetry integration in a Grepr pipeline.

To use the REST API, see the API specification.

Requirements

Creating and configuring an OpenTelemetry integration requires the following:

• The URL for the HTTP/HTTPS endpoint where your observability vendor accepts OpenTelemetry data.

Use an OpenTelemetry integration in a Grepr pipeline

Use the following steps to create an OpenTelemetry integration in the Grepr UI and use it in a pipeline to source and sink data.

Step 1: Create an OpenTelemetry integration

To create an OpenTelemetry integration in the Grepr UI:

1. Go to the Integrations page in the Grepr UI and click Add new next to Observability Vendors.



2. In the Add Observability Vendor dialog:

   • In the Type menu, select OpenTelemetry.
   • In the Name field, enter a name for the integration.
   • In the Endpoint field, enter the URL for the HTTP/HTTPS endpoint.
   • (Optional) In the HTTP Headers section, add any required headers, such as authentication headers. For example, Authorization: Bearer <token> or X-API-Key: <key>. You can optionally select Make headers secret to store the headers securely and mask them in the UI. Use this option for sensitive headers, such as API keys or tokens.

3. Click Create.

Step 2: Add a source to your pipeline

To add a source to your pipeline that uses the OpenTelemetry integration:

1. In the Grepr UI, go to the overview page for an existing pipeline or create a new pipeline from the homepage.
2. In the left-hand navigation menu on the pipeline overview page, click Sources.
3. In the Add source dialog, select the OpenTelemetry integration in the Source menu.
4. Click Submit.

Step 3: Configure log forwarding to Grepr

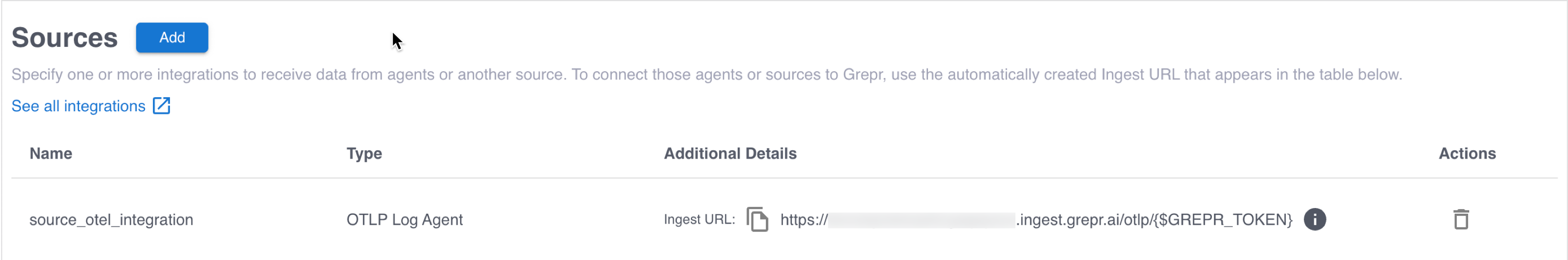

To send data to Grepr, you configure your collector or agent to send the data to the ingestion URL for your Grepr integration, rather than sending it to your observability vendor’s platform. To find the ingestion URL when using the Grepr UI to configure your pipeline, go to the details view for the pipeline, click Sources in the left pane, and copy the Ingest URL.

When you use the API, you can construct the ingestion URL using the following format:

Replace <integration-id> with the identifier of the vendor integration used by your pipeline, and replace <org-id> with the identifier for your organization.

For an observability vendor not included in this section, you can use the OpenTelemetry integration with these general steps:

1. Check your vendor’s documentation for their OTLP/HTTP endpoint URL.

2. Identify any required headers—for example, authentication headers, such as API keys or tokens.

3. Configure the integration

   • Endpoint URL: Your vendor’s OTLP HTTP endpoint
   • Headers: Any non-sensitive headers required by your vendor
   • Secret Headers: Sensitive authentication headers like API keys

4. Configure your OpenTelemetry Collector: Use the otlphttp exporter to send logs to Grepr’s ingestion endpoint. See the OpenTelemetry Collector configuration examples below.

To see more information and configuration examples, select the tab for your preferred log collector:

exporters:
  otlphttp:
    endpoint: <grepr-ingestion-url>

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

exporters:
  otlphttp/grepr:
    endpoint: <grepr-ingestion-url>

  otlphttp/vendor:
    endpoint: <vendor-otlp-endpoint>
    headers:
    authorization: "Bearer <vendor-token>"

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp/grepr, otlphttp/vendor]

exporters:
  otlphttp:
    endpoint: <grepr-ingestion-url>

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

exporters:
  otlphttp:
    endpoint: <grepr-ingestion-url>

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

Grafana Cloud

To connect with Grafana Cloud via Grepr, configure your OpenTelemetry integration with Grafana Cloud’s OTLP endpoint and required authentication headers.

Integration Configuration:

• Endpoint URL: Your Grafana Cloud OTLP endpoint (e.g., https://otlp-gateway-prod-us-west-0.grafana.net/otlp)
• Secret Headers:
  • Authorization: Bearer <your-grafana-cloud-access-token>
  • Your access token should be generated from a Cloud Access Policy with write access to logs (navigate to Home > Administration > Users and access > Cloud access policies in Grafana Cloud)

Configuration (values.yaml):

exporters:
  otlphttp:
    endpoint: <grepr-ingestion-url>

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

For more information, see Connect Grepr to Grafana Cloud for detailed setup instructions including configuration examples for Grafana Alloy, OpenTelemetry Collector, and Grafana Agent.

Security Considerations

When configuring OpenTelemetry integrations:

• Use secret headers: Always use secret headers for sensitive information like API keys, tokens, or passwords
• Validate endpoints: Ensure endpoint URLs use HTTPS for secure data transmission
• Header validation: Grepr validates all headers for security issues, including CRLF injection, control characters, and other potential attacks
• Avoid reserved headers: Some HTTP headers are reserved and cannot be set by users for security reasons
