Configure Splunk connections for integration with Grepr

The Grepr Splunk integration enables you to ingest logs into Grepr using a Grepr source, process the logs with a Grepr pipeline, and then send the processed logs to Splunk using a Grepr sink.

The Grepr Splunk integration supports forwarding data through the following interfaces:

• Splunk’s HTTP Event Collector (HEC): You can use any collector that supports HEC, including Fluent Bit, Fluentd, and the Splunk OpenTelemetry Collector.
• S2S over HTTP: You can forward data from Splunk Universal Forwarders or Splunk Heavy Forwarders using S2S over HTTP. S2S over TCP is not supported.

To send logs to a Grepr pipeline before forwarding the logs to your Splunk instance, you change your collector configuration to send the logs to a Grepr endpoint URL instead of a Splunk HEC or S2S endpoint.

In addition to using a Splunk integration to ingest log data with a Grepr source and send processed logs to Splunk with a Grepr sink, you can also use a Splunk HTTP source to ingest data from a Splunk instance into Grepr for processing. See Ingest log data from Splunk using the Splunk HTTP source.

You can use the Grepr UI or REST API to add a Splunk integration. To learn how to create a Splunk integration in the Grepr UI and configure collectors to send logs to Grepr, see Use a Splunk integration in a Grepr pipeline.

To use the REST API, see the API specification.

Requirements

The Grepr integration for Splunk requires the following:

• An HTTP Event Collector (HEC) token is required for both HEC and S2S. You create an HEC token in the Splunk platform settings. See Set up and use the HTTP Event Collector in Splunk Web .
• A Bearer token for authentication to the Splunk REST API is required for these Grepr features:
  • Enabling Grepr to run Splunk queries and use the results of those queries to generate input to the log reducer. See Enable selective reduction with a Splunk integration.
  • Using a Splunk HTTP source to ingest data from a Splunk instance into Grepr. The user associated with the token must have the search and rest_access_server_endpoints capabilities. See Ingest log data from Splunk using the Splunk HTTP source.

For details on creating tokens for the Splunk API, see Create authentication tokens .

Use a Splunk integration in a Grepr pipeline

Use the following steps to create a Splunk integration in the Grepr UI and use it in a pipeline to source and sink data.

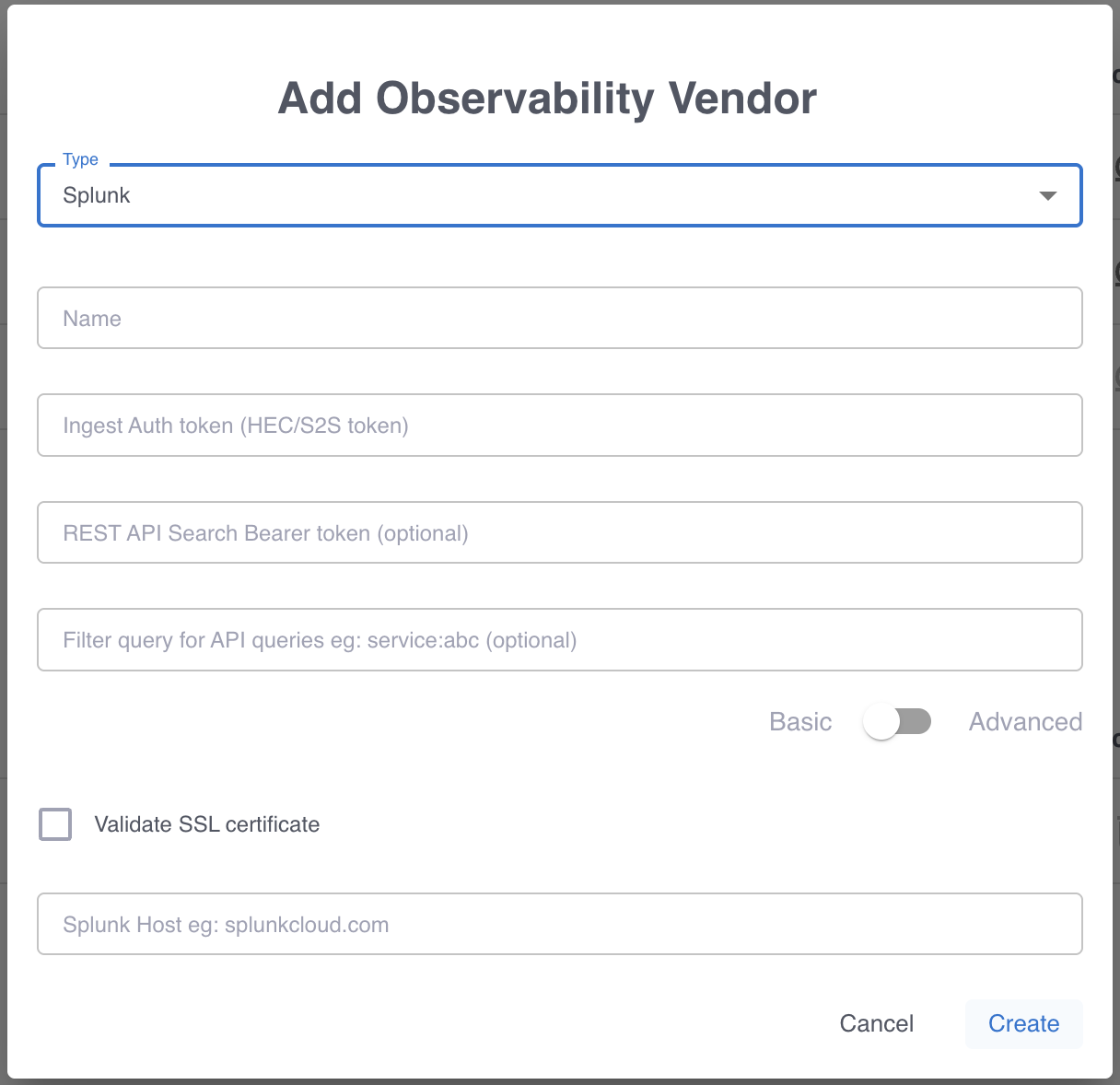

Step 1: Create a Splunk integration

To create a Splunk integration in the Grepr UI:

1. Go to the Integrations page in the Grepr UI and click Add new next to Observability Vendors.



2. In the Add Observability Vendor dialog:

   • In the Type menu, select Splunk .
   • In the Name field, enter a name for the integration.
   • In the Ingest Auth token field, enter your Splunk HEC token.
   • In the Splunk Host field, enter the hostname for your Splunk instance.
   • (Optional) In the REST API Search Bearer token field, enter a Bearer token to authenticate against the Splunk API. Configuring this token allows Grepr to query your Splunk instance. The Grepr platform uses the results of these queries to store exceptions for input to the log reduction step of your pipeline. See Enable selective reduction with a Splunk integration.
   • (Optional) Use the Validate SSL certificate checkbox to turn validation of SSL certificates on or off when Grepr connects to your Splunk instance.

3. Click Create.



Step 2: Add a source to your pipeline

To add a source to your pipeline that uses the Splunk integration:

1. In the Grepr UI, go to the overview page for an existing pipeline or create a new pipeline from the homepage.
2. In the left-hand navigation menu on the pipeline overview page, click Sources.
3. In the Add source dialog, select the Splunk integration in the Source menu.
4. Click Submit.

Step 3: Forward logs to Grepr using HEC

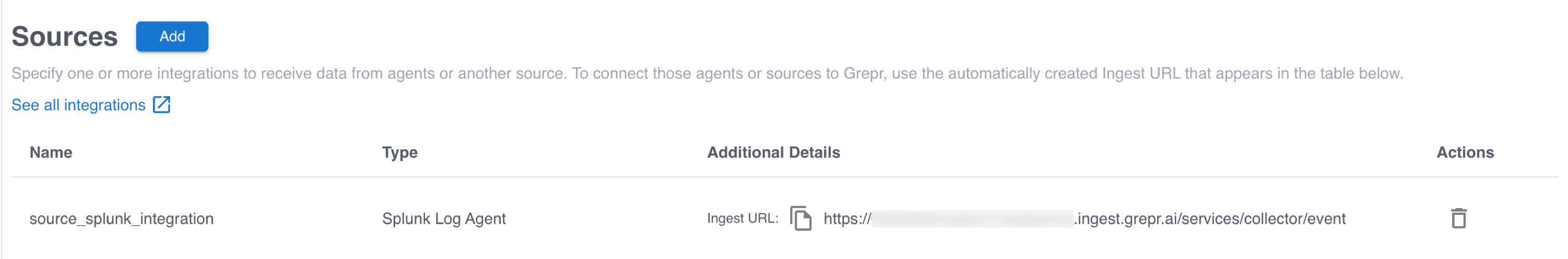

To send data to Grepr, you configure your collector or agent to send the data to the ingestion URL for your Grepr integration, rather than sending it to your observability vendor’s platform. To find the ingestion URL when using the Grepr UI to configure your pipeline, go to the details view for the pipeline, click Sources in the left pane, and copy the Ingest URL.

When you use the API, you can construct the ingestion URL using the following format:

Replace <integration-id> with the identifier of the vendor integration used by your pipeline, and replace <org-id> with the identifier for your organization.

To see more information and configuration examples, select the tab for your preferred collector:

[OUTPUT]
   Name              splunk
   Match             *
   Host              <integration-id>-<org-id>.ingest.grepr.ai
   Port              443
   TLS               On
   TLS.Verify        On
   Splunk_Token      <hec-token>

<match your_tag.**>        # Adjust your match pattern as needed
 @type                     splunk_hec
 protocol                  https
 hec_host                  <integration-id>-<org-id>.ingest.grepr.ai
 hec_endpoint              services/collector/event
 hec_port                  443
 hec_token                 <hec-token>

 <buffer>                  # Buffer configuration is recommended for production
   @type memory            # Or file for persistence
   flush_interval          # Adjust as needed
   chunk_limit_size        # Adjust as needed
 </buffer>                 # Add other buffer parameters as needed
</match>

exporters:
 splunk_hec:
   token: <hec-token>
   logs:
     endpoint: <ingestion-url>

service:
 pipelines:
   logs:
     receivers: [otlp] # Replace with your actual receiver(s)
     processors: [batch] # Replace/add your actual processor(s)
     exporters: [splunk_hec]

Forward logs to Grepr using the Splunk Universal Forwarder or Heavy Forwarder

To forward logs to Grepr using the Splunk Universal Forwarder or Heavy Forwarder:

1. Add an [httpout] section to your Splunk Heavy Forwarder or Universal Forwarder outputs configuration (outputs.conf) with the following settings:
   • Set httpEventCollectorToken with an HEC token from your Splunk settings.
   • Set uri to the hostname of the ingestion URL from your Grepr source. Omit the path from the ingestion URL and append port 443 to the URL. The following is an example of a properly formatted value for the uri setting: https://q0yf61xl3k2b1-orgid.app.grepr.ai:443.
2. To load the new configuration, restart your forwarders.

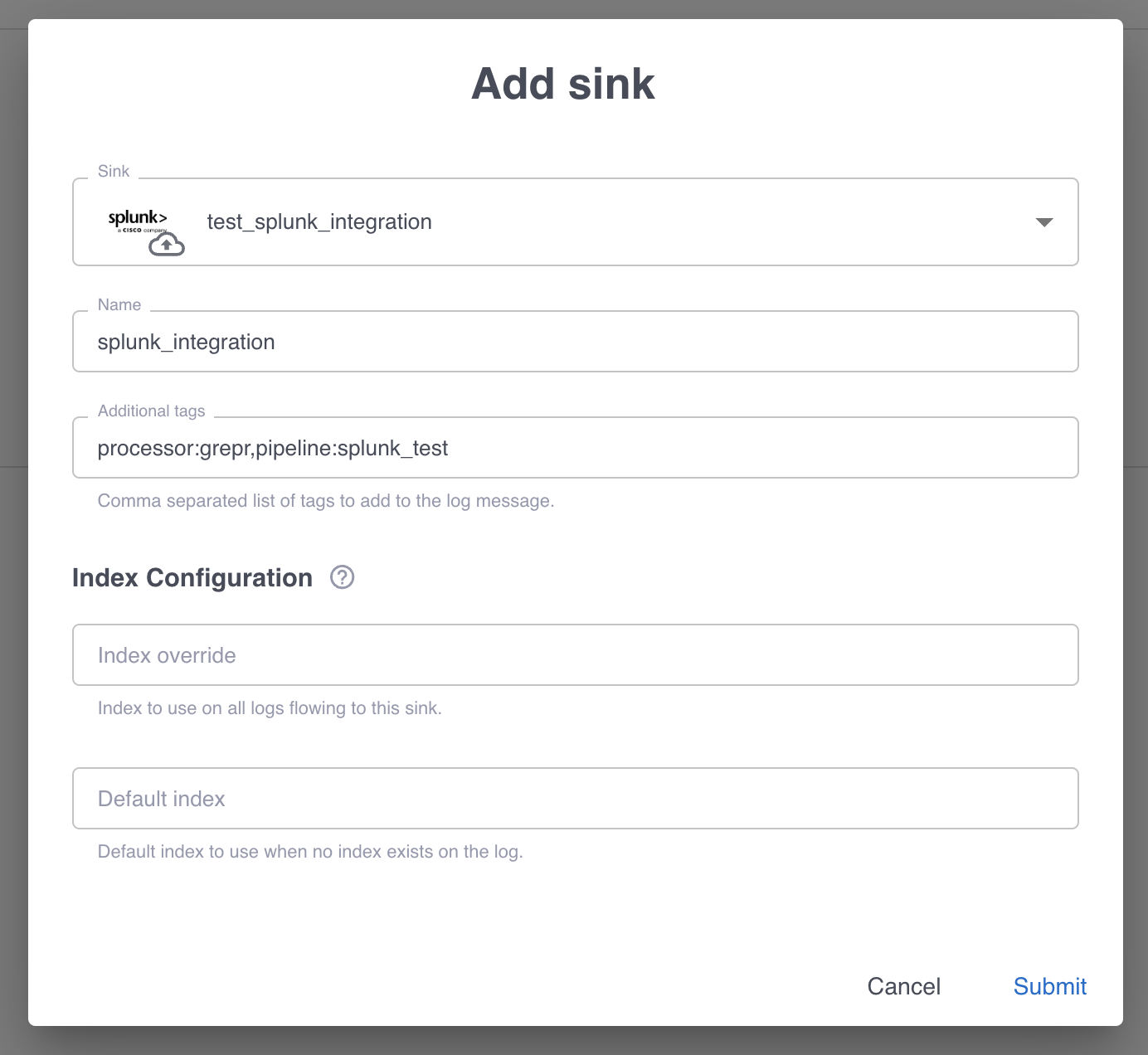

Step 4: Add a sink to your pipeline

To add a sink to your pipeline that uses the Splunk integration to send processed logs to your Splunk instance:

1. In the Grepr UI, go to the overview page for your pipeline.

2. In the left-hand navigation menu, click Sinks.

3. In the Add sink dialog:

   • Select the Splunk integration in the Sink menu.
   • In the Name field, enter a name for the integration.
   • In the Additional tags field, specify comma-separated tags to add to all log messages sent through this sink. These tags can be used for filtering and organizing logs in Splunk. For example: processor:grepr,pipeline:my_pipeline,environment:production.

4. The Index Configuration section allows you to configure how logs are routed to Splunk indexes. Grepr follows a specific index routing logic to determine the destination index for each log:

   • Index override takes priority: If an ‘Index override’ is provided, all logs flowing to this sink use this index, regardless of any other index information.
   • Log-level index field: If no ‘Index override’ is provided and an index field exists on the log (from an agent or transformations), that index is used.
   • Sink default index: If no ‘Index override’ is provided and no index field exists on the log, the ‘Default index’ specified in this sink configuration is used.
   • HEC token default: If none of the above conditions are met, the log is routed to the default index configured on the HEC token in your Splunk instance.

5. Click Submit.



Ingest log data from Splunk using the Splunk HTTP source

You can use the Splunk HTTP source to read log data from a Splunk instance into Grepr. You can use this feature for tasks such as moving logs from Splunk to another platform or to test Splunk log processing in Grepr without modifying forwarders.

To configure and use a Splunk HTTP source in a pipeline:

1. Create a Splunk integration that includes an authorization token for the Splunk REST API. See Step 1: Create a Splunk integration.
2. In your pipeline, add a Server source that uses the Splunk integration. See Step 2: Add a source to your pipeline.

Enable selective reduction with a Splunk integration

When your integration configuration includes a bearer token for authenticating to the Splunk REST API, Grepr can submit searches to the Splunk API and use the results of those searches to store exceptions. These exceptions are then made available to the Grepr Log Reducer and used to determine which messages should not be processed by the reducer.

To see a full list of exceptions from the parsed alerts, in the Observability vendors section of the Integrations page in the Grepr UI, click on the cloud sync icon under Actions.

To learn more about the Log Reducer, see How does Grepr reduce log volumes?.

Limitations

• The Splunk integration supports only Splunk HEC and S2S over HTTP. TCP connections, including S2S over TCP, are not supported.
